Function of the starter motor in the Mercruiser engine
The starter is an electric starter motor that sets the combustion engine in motion until it runs under its own power. It uses the electrical energy from the battery to turn the flywheel via the pinion drive and thus initiate the first stroke of the engine. The engine cannot start without a functioning starter motor.
Variants & technical differences
Mercruiser starter motors differ in several technical features:
-
Connected power & amperes (e.g. 12 V systems)
-
Number of pinion teeth and pinion spacing
-
Direction of rotation
-
Mounting flange dimensions / bore
-
OEM reference numbers and housing shape
Typical OEM starter references such as 50-863007A1 are used in many GM-based Mercruiser applications.
In sterndrive applications, starters are often designed with a thin pinion and permanent magnet gear reduction. Marine starters are also protected against sparking and the risk of explosion in the fuel-surrounded area.
Selection by reference number & engine type
The correct starter should be selected using the OEM reference number or part number, as starters with the same basic functions often have different fits. Relevant Mercruiser starter part numbers include:
-
50-863007A1 - widely used for Mercruiser V6/V8 engines
-
8M0090697 - for 4- and 6-cylinder inline series
-
Other variants depending on displacement, flywheel size and year of manufacture
Recommended selection steps:
-
Take the OEM reference number from the old part or parts catalog
-
Check engine type and year of manufacture
-
Check starter dimensions, number of pinion teeth and direction of rotation
-
Select the right starter motor
A structured comparison reduces incorrect orders and installation errors.
Fitting accuracy & installation instructions
Please note when installing the starter motor:
-
Disconnect the battery before working
-
Disconnect the old starter wiring in a documented manner
-
Fit new unit without play
-
Check pinion position in relation to flywheel
-
Connect electrical connections cleanly and without corrosion
-

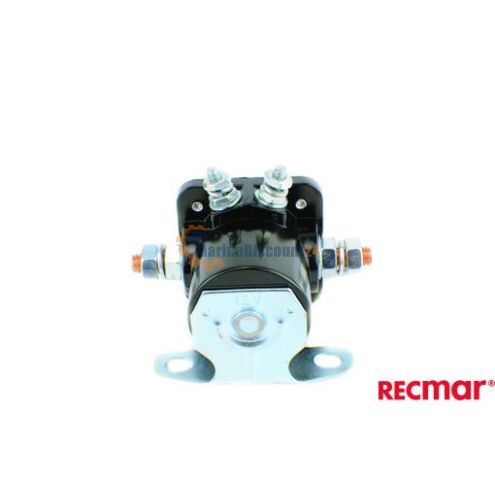

Check starter solenoid/relay
Improper installation can lead to grinding or engagement problems, sparking or premature failure.
Diagnosis & typical signs of failure
Common symptoms of a worn or defective starter motor:
-
Engine does not turn or only turns weakly
-
Clicking noise when trying to start
-
Pinion does not engage with the flywheel
-
Starting problems with low battery voltage
A specific test with battery and magnetic switch check helps to distinguish starter defects from other causes.
