Function of timing belts, V-belts & flat belts
Drive belts transmit mechanical energy within the Volvo Penta engine system. Different belts perform specific tasks:
-
Timing belt: Synchronization of crankshaft and camshaft
-

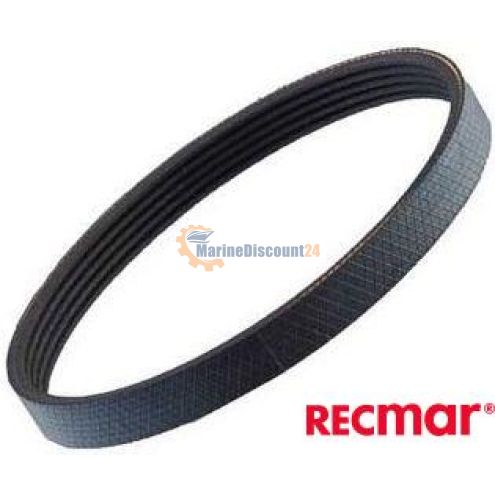

V-belts: Drive of auxiliary units such as alternator or cooling water pump
-
Flat / V-ribbed belts: Multiple drive of modern units with very smooth running
Correct belt function ensures stable timing, constant vehicle electrical system voltage and reliable cooling performance.
Differences: Timing belt vs. accessory belt
Timing belts work positively with a defined tooth geometry. They are manufactured with high precision and are crucial for engine timing.
V-belts and flat belts transmit power non-positively via friction. They drive auxiliary units and differ in profile, number of ribs and length.
Mixing them up leads to malfunctions or inadequate power transmission.
Selection by OEM reference number
The OEM reference number is the central selection criterion. It defines
-
exact belt length
-
Tooth or rib profile
-
material quality
-
Tension requirement
Recommended procedure:
-
Check OEM reference number from parts catalog or old part
-
Determine engine type and year of manufacture
-
Select suitable belt incl. tensioner pulley
This structured selection reduces incorrect orders and fitting errors.
Tensioning pulleys, idlers & service kits
For maximum operational reliability, the following should also be used when changing the belt:
-
Tension pulleys
-
idler pulleys
-
Belt tensioners
should be checked or replaced. Complete sets minimize the risk of premature wear and ensure even tension.
Accuracy of fit: Engine type & year of manufacture
Volvo Penta engines vary in terms of:
-
Belt guide
-
Power unit arrangement
-
Torque and load profile
Only OEM-compliant belts guarantee correct fit, smooth running and minimal tolerances.
Maintenance & typical wear patterns
Typical signs of worn belts:
-
Squealing or grinding noises
-
Visible cracking
-
Fraying or hardening of the material
-
Uneven tension
Regular visual inspection and scheduled replacement prevent consequential damage to the engine and auxiliary units.
