Function of the shifting components in the Mercruiser system
The shift and control components in Mercruiser form the link between the driver's controls and the mechanical/electrical actuation of the engine or drive. They ensure
-
precise gear and speed selection
-
fast response to steering commands
-
reliable control of forward, neutral and reverse gears
-
reliable synchronization between lever and gearbox
A well-tuned gearshift increases comfort, safety and efficiency when maneuvering and driving.
Shift levers, control boxes & control units

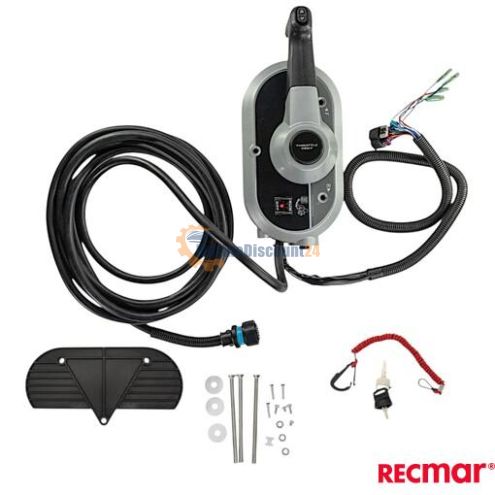

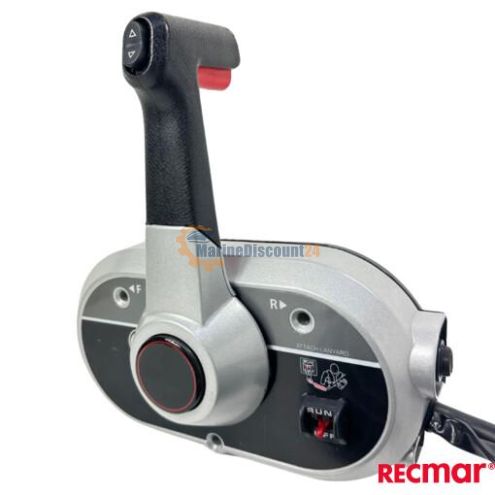

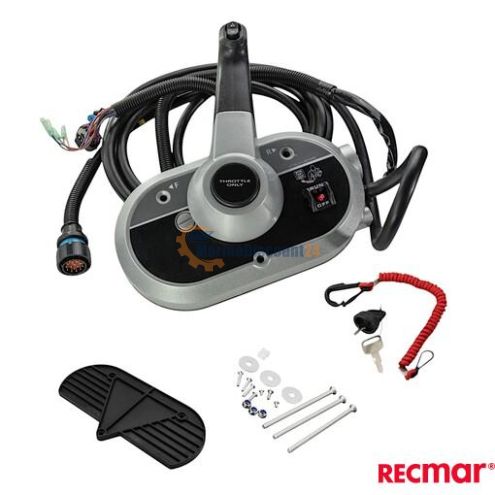

Mercruiser shift levers and control boxes are ergonomic operating modules that send control signals to the shift mechanism or control unit. Typical variants include:
-
Single or double lever (throttle/shift combined)
-
Control boxes with cable connection
-
Electronic control units (for E-Throttle/E-Shift)
Comfortable lever travel, non-slip grips and correct assignment to cables/controls are crucial.
Control & shift cables (Bowden cables)
Bowden and control cables transmit mechanical movements from the lever/box to the transmission control or throttle. There are differences in:
-
Length & connection types
-
Design/rope thickness
-
Corrosion resistance & sheath
-
Precisely fitting end connections
The selection should exactly match the control box design and gearbox to ensure smooth shifting movements.

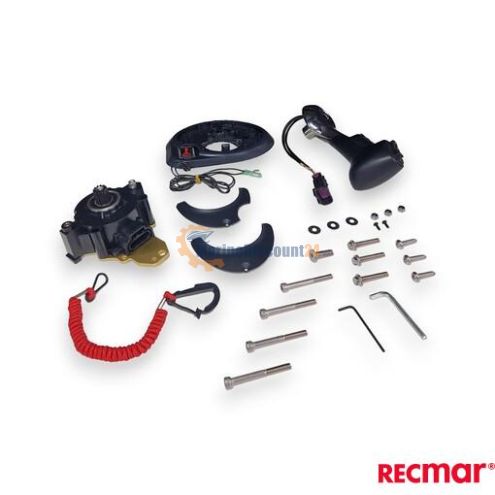

Shifting accessories & mounting parts
Additional accessories include:
-
Cable attachments & clips
-
Brackets & adapters
-
Joint and clamping sleeves
-
Cover caps and protective sleeves
These parts ensure correct cable routing, vibration-free installation and long-lasting function.
Selection by reference number & motor type/application
The most reliable method of selecting gearshift and control parts is to match them by OEM reference number in conjunction with engine type, year of manufacture and control system (mechanical or electronic).
Recommended selection steps:
-
Check the reference number on the old part
-
Determine engine type, year of manufacture and control system type
-
Select the appropriate shift lever, control unit or cable
A structured comparison minimizes incorrect orders and installation problems.
Installation & adjustment instructions
The following applies when installing switching and control parts:
-
Disconnect the battery before carrying out any electrical work
-
Mark and remove old control cables
-
Lay new cables/bowden cables without kinks
-
Fasten shift lever and box without play
-
Perform a functional test (gear selection, reset, throttle)
Correct adjustment and secure fastening guarantee precise and delay-free control.
Maintenance & typical error patterns
Common symptoms of worn or incorrectly adjusted shifting components:
-
Hooking or stiff shifting
-
Insufficient reset to neutral
-
Gear selection problems
-
Cable wear or corrosion
Regular visual and functional checks as part of maintenance improve reliability and safety.
